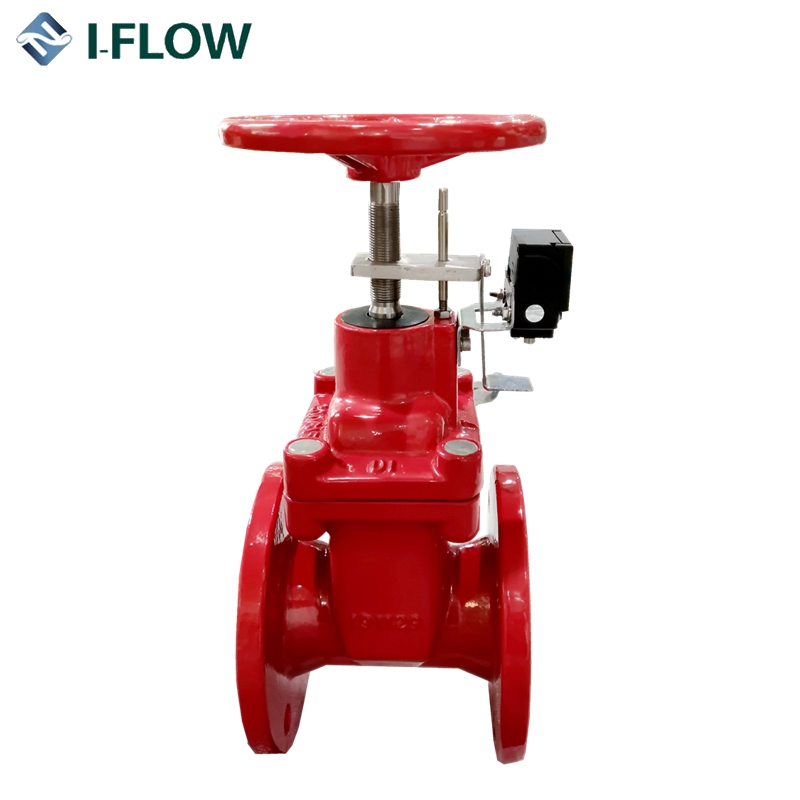

NON RISING STEM RESILIENT SEATED DUCTILE IRON GATE VALVE WITH POSITION LIMITED SWITCH
$64.7
Piece(s)
Inquiry >
Type：
Gate Valves
Application：
General
Power：
Manual
Customization:
Not
AvailableDownload:
Basic Info.
seat:
NBR/HYPALON/EPDM/NATURE RUBBER
size:
DN50-DN300
stem:
stainless steel
Product Description
FEATURES
Light Weight;
No - grooved body cavity;
Wedged rubber - packed wholly Close tolerance cast valve body;
Three O-ring
Beneficial to drinking
APPLICABLE STANDARDS
Flange to en1092-2 PN16
DIN Standard
Flange and drilling To EN1092-2
TECHNIC CRITERION
Nominal pressure: 1.0~1.6MPa
Nominal diameter: DN40-DN300
Applicable medium: Water, sewage, oil, gas etc.
Main material of valve: Ductile iron

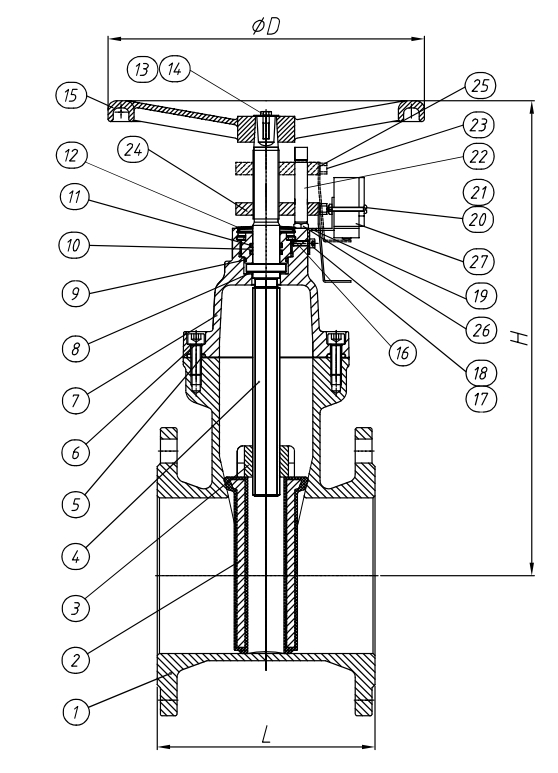

DN40506580100125150200250300L140150170180190200210230250270H295295305340375440470585680775D175175255255305305305355405405
