Factory Sale Jewelry Tools 1KG Mini Gold Melting Furnace

Product Description

Product Features:

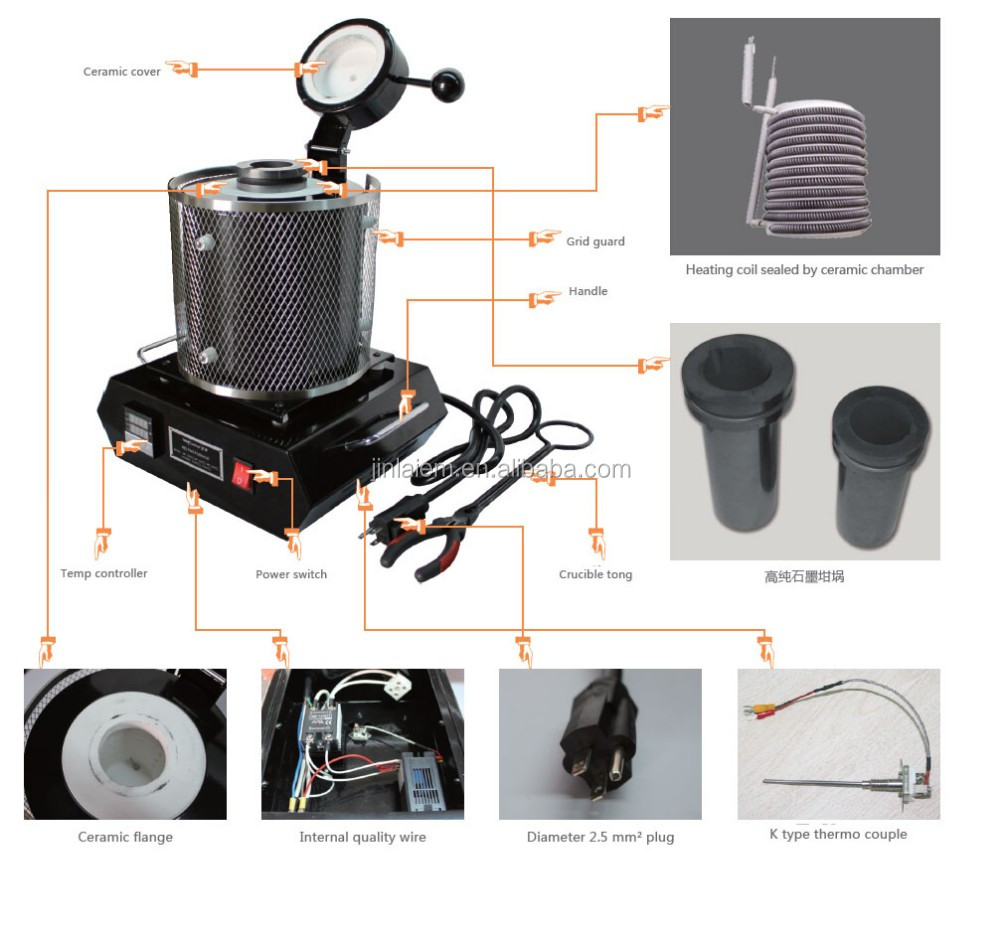

  Apply SSR controller, alloy made heating element which has melting point up to 1900ºC. High temperature proof ceramic melting chamber, high aluminum protection and other advanced, top quality components, in addition to unique design, all consolidate furnace's durability and working efficiency over current markets furnaces.

Technical Parameters:

Max. temperature of machine: 1150ºC

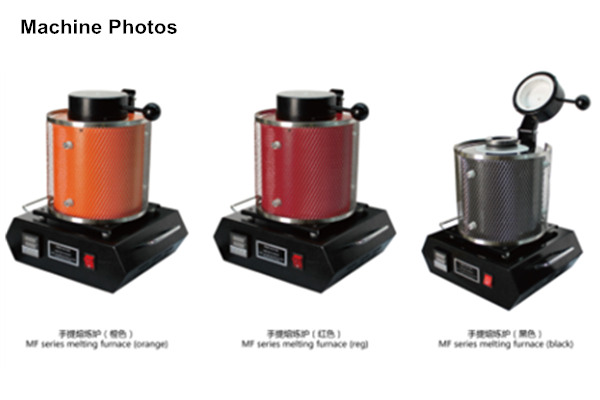

Casting color: orange, black, red (see below photo)

Description1KG Melting FurnaceModelJL-MF-1Input power1500WPower supply(220V)50/60HZ,7APower supply(110V)50/60HZ,14AMeasurement accuracy±0.5%FSWorking environment0-50ºC,30-85%RHNet size310*360*370mmPacking size400*400*460mmNet weight15KGGross weight20KG

Photos of Product

Description:

 This Machine uses a solid-state relay control, a melting point of 1900 ℃ temperature alloy heating wire, high temperature furnace made of synthetic materials, and insulation materials such as high-alumina series of advanced, high-quality accessories, makes long life than the market similar machines, high efficiency.

Temperature table setting:

  1. Normal display in SV / PV state, click "Set" button to make SV display is flashing, the "<" button to find the desired set temperature digits, then Use "∨" "∧" change the set temperature, and then click the "Set" button, the instrument back to the SV / PV normal display.

  2. In the normal display, press and hold the "Set" button for 3 seconds, the display parameter setting state in PV display, display its corresponding value in the SV display

Followed by "Set" button to display the symbol table parameters :( all parameters have been set up at the factory, do not tampered)

  3.Note: This unit has displayed reply function, when the operator to modify the parameters set back operations such as forgetting the main display mode, the meter will automatically return to the main display mode after 30 seconds, altered parameters without saving

Special attention:

  1. Given that the operating principle and characteristics, to make the machine more durable, especially recommend this machine continuous working time not more than three hours, as work up

More than three hours, please stop for about one hour and then continue to work.

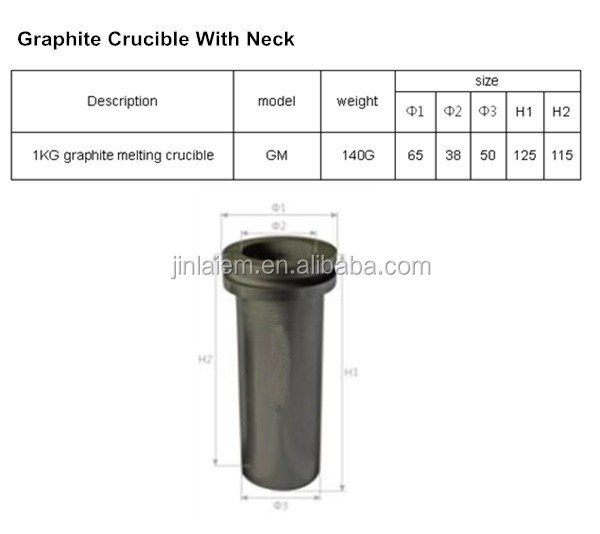

  2. Please pay attention to any inspection of the crucible, and replaced at any time, to avoid damage to the furnace crucible breakage happen.

  3. This machine set a maximum operating temperature of 1150 ℃.

Our JL-MF-1 Gold Melting Furnace Advantage:

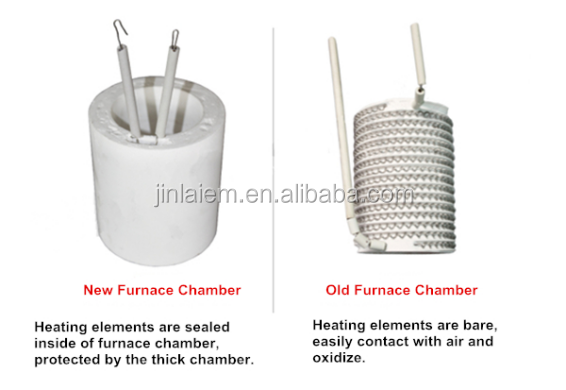

1) Advanced Furnace Chamber Design

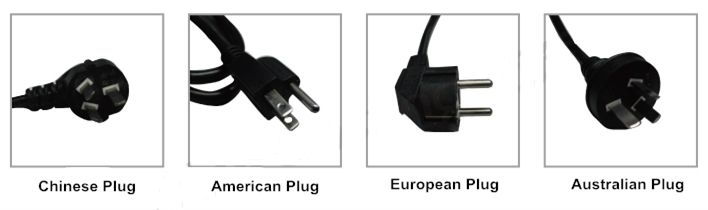

2) Different Types of Plug For Option

Packaging & Shipping

Carton box  package (L*W*H): 400*400*460mm, 18KG
