Product Introduction

DC Solar water pumping system

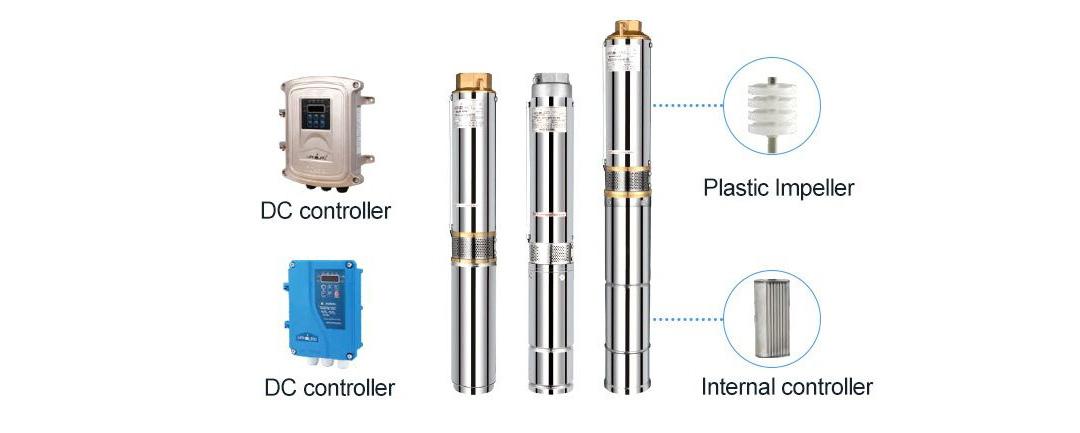

DC Solar water pumping system including DC water pump, solar module, MPPT pump controller, solar mounting brackets, dc combiner box and related accessories.

Daytime, solar panel array provide power for the whole solar water pump system operating, the MPPT pump controller converts the direct current output of the photovoltaic array into alternating current and drives the water pump, adjust the output voltage and frequency in real time according to the change of sunshine intensity to achieve maximum power point tracking.

Product Paramenters

Product Feature

1.Compare with AC water pump system, dc well water pump system has high efficiency; portable dc pump and MPPT controller; a small quantity of solar panels and mounting brackets, easy to install.

2.Only need small area to install solar panel array.

3.Safety, low cost, long life time.

Application

(1) Economic crops and farmland irrigation.

(2) Livestock water and grassland irrigation.

(3) Household water.

Installation Process

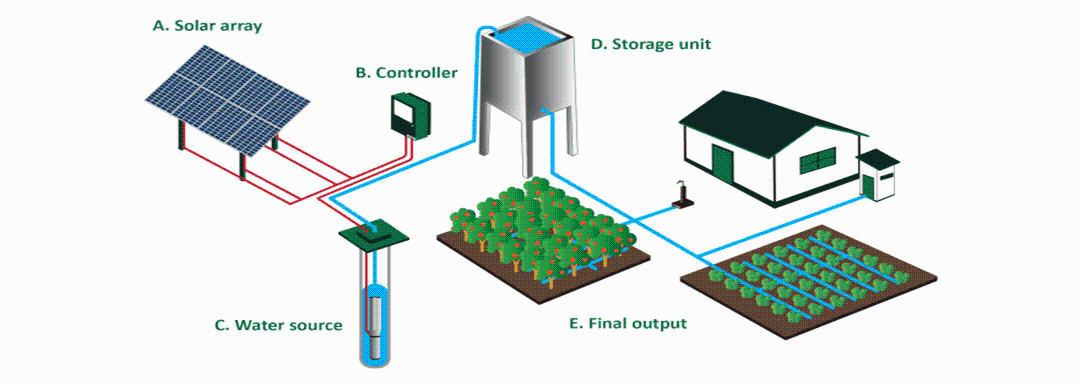

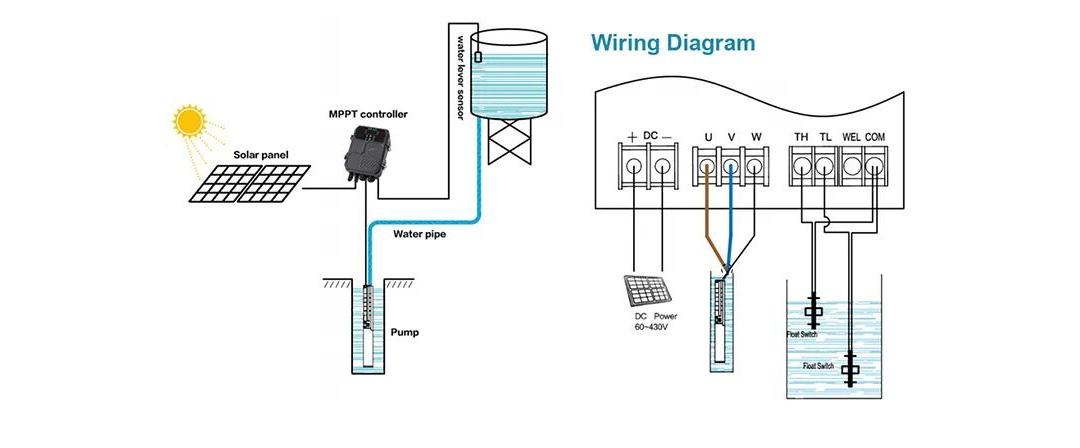

Solar pumping system mainly consists of PV modules, solar pumping controller / inverter and water pumps, Solar panels convert sunlight to electrical energy which is passed to the solar pump controller, The solar controller stabilizes the voltage and output power to drive the pump motor, Even on cloudy days,it can pump 10% water flow per day. Sensors are also connected to the controller to protect the pump from running dry as well as to automatically stop the pump working when the tank is full.

Solar panel collects sunlight→DC electricity energy → Solar Controller(rectification,stabilization, amplification,filtering)→available DC electricity→(charge the batteries)→pumping water.

Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency, The recommended solar panels power = Pump Power * (1.2-1.5).
