Features:

Ø 24 Hours ABPM with body position recording

Ø Motion tolerance, good consistence in ambulatory circumstance

Ø Clinical level, accurate reading

Ø Alarm function for out of BP limit reading

Ø Gravity sensor inside to determine 4 body positions: sit/stand, lying, slight motion, heavy motion

Ø Hypertension PC software, provide professional analysis

Ø Retest function, when the measurement result deviates from the previous average value, the device will automatically retest, considering patient comfort, only retesting once.

Ø Analysis software automatically deletes error data, and deleted data is visible, reducing doctor workload.

Ø Analysis software can provide day and night comparison histogram, frequency map, pie chart, trend chart, bar trend chart, scatter chart, etc.

Specifications

Name: Ambulatory Blood Pressure Monitor

Model: ECHO

Measurement method: Oscillometric method

Systolic blood pressure measurement range: 40-260 mmHg

Diastolic blood pressure measurement range: 20-210 mmHg

Pulse rate measuring range: 40-200 bpm

Resolution Blood pressure: 1mmHg or 0.1Kpa; pulse rate: 1BPM

Repeatability: The difference of repeated readings of each point is within

4mmHg in the statically continuous low-pressure mode

Accuracy: Static Accuracy: ±3 mmHg; Pulse rate: ±3BPM

System Validity: Complied with the standard of YY0670-2008 - 4.5.5

Security system: The rated range of cuff pressure: 0~290mmHg

Power supply: 2 x AA alkaline batteries

Data Memory: Flash memory up to 300 readings

Calibration: At least one time two years

Safety System: Maximum limit of inflation is 290mmHg, valve auto open when outage, maximum measuring of BP time is no less than 120 seconds

Sampling period: Multiple independent programming cycle (5, 10, 15, 20, 30, 45, 60, 90, 120 minutes)

60, 90, 120 minutes)

size: About 114.5×67×32mm

Net Weight: About 210g with batteries

working environment: T: 5℃-40℃; HR: 10%-80%; gas pressure: 70KPa-106KPa

Condition of storage: Stored under the condition of temperature (-20℃-+55℃), HR

(no more than 95%) and atmospheric pressure (70KPa-106Kpa), no corrosive gases and well-ventilated.

Data transmitted : USB data cable

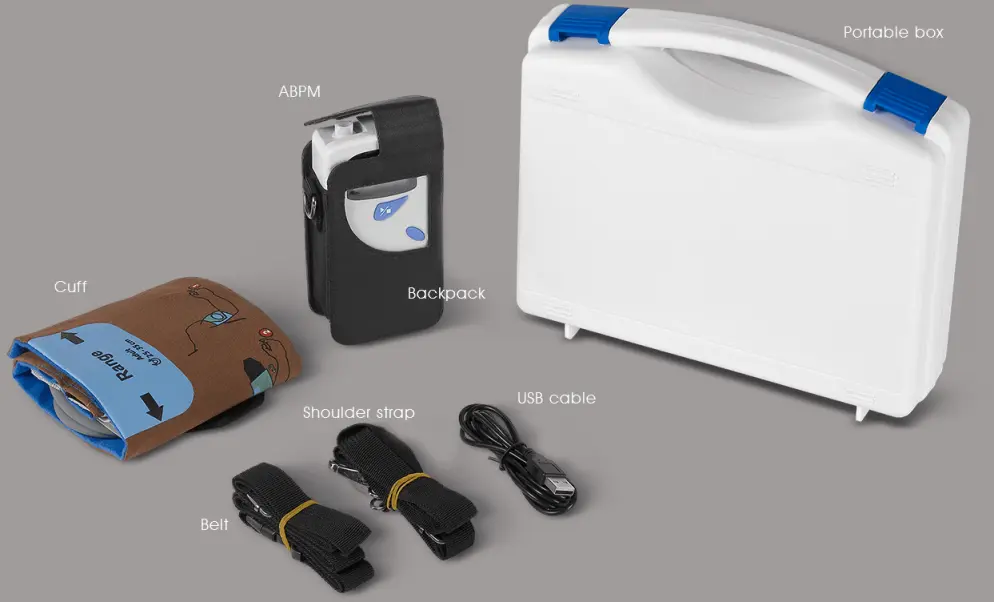

Package
