Product Description

                                  BORSAM 3 Channel, 12 Channel ECG Holter Recorder

Main Applications (not limited to):

(1) arrhythmia or myocardial ischemia

(2) ECG documenting therapeutic interventions in individual patients or groups of patients.

(3) ST segment changes

(4) Evaluation of a patient's response after resuming occupational or recreational activities.

(5) Evaluation of patients with pacemakers.

(6) Reporting of time and frequency domain heart rate variability.

(7) Reporting of QT Interval.

Main Features:

1.Outstanding on-screen graphics

2.Remarkable speed to download patient data with an USB cable or Flash Card Reader

3. Maximum patient comfort with small size & light weight

4.very low power consumption with pacemaker sampling rate 20000Hz max

5. Analysis is completed and ready to be printed within minutes after downloading

6. Comprehensive, reliable Holter report

7.24 hours to 5 days Recording

Specifications:

Model: iTengo; BS6930

Lead: 3 channel; 12 channels

Sampling Rate: 128Hz/s-1024Hz/s (optional)

A/D conversion: 10/16 bits

Recording time: 24 hours - 48 hours (5 days for 3-ch)

Frequency Response: 0.05Hz to 60 Hz

Input Impedance: >6MΩ

Gain: 1/2, 1, 2

Storage: SD Card (8GB)

CMRR: 80dB

Pacemaker: Support

Display: LCD to show ECG wave, time

Language:English

Data transfer: USB 2.0 or SD Card

Battery: 1 x AAA battery

Battery life: 96 Hours for 3 leads

Size: 72mm×53mm×16mm

Weight: 61g with battery

ECG Holter Analysis Software

Main Features:

(1).Multi-channel Analysis with 99.9% accuracy

(2).High accurate PR Intervals (μV) measurement

(3).ECG Waterfall technology, easily expose any micro pathological changes

(4).T-Wave Aternans (μV) Analysis technology

Software Functions:

• 99.99% QRS analysis accuracy.
• Multi-windows display, flexible and easy to operate.
• Demix: To provide a graphic method of discerning mixed morphology within shapes
• Full templates with multi-channels analysis
• Trend and tabular display of all parameters
• Provide over 30 types histograms, help to check 46 types arrhythmia.
• Powerful data management system for easy export, import, archive and search
• Pacemaker pulse detection and support all pacemakers, like VVI, AAI,DDD, etc.
• ST Segment analysis and myocardial ischemia evaluation
• Atrial Fibrillation analysis
• R-R histogram and R-R trend diagnosis
• OSAS (obstructive sleep Apnea syndrome) analysis
• MTWA(Micro-volt T-Wave Alternans) analysis
• Waterfall analysis
• QT analysis
• Some sudden cardiac death predictive factor: HRT, T-wave alterans & HRV.
• DC/AC analysis
• Strips and report printout
• Can export ASCII data and support GDT communication interfaces
• Support more than 7 days continuous ECG Holter analysis.

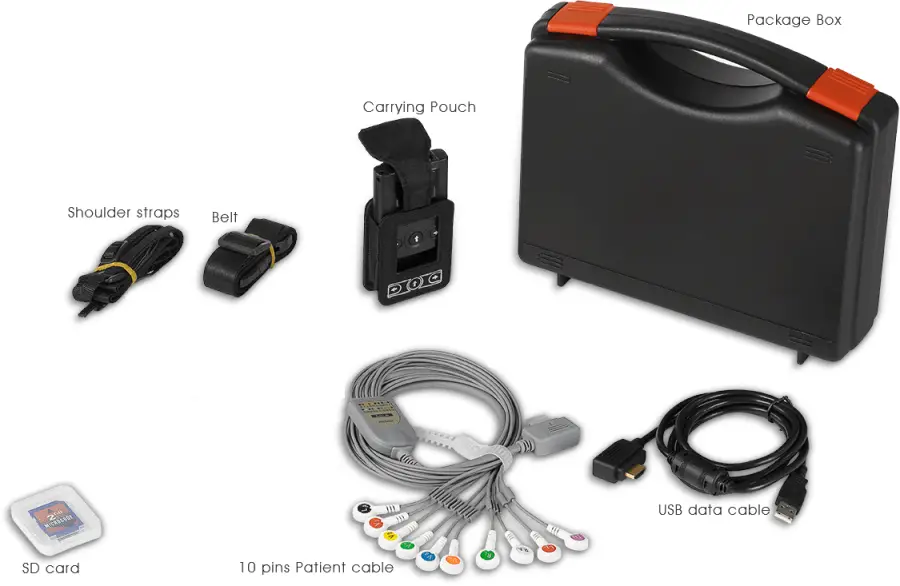

Package
