Packaging & delivery
Packaging DetailsStandard packing
Portguangzhou
Lead time:
| Quantity(pieces) | 1 - 500000 | >500000 |
| Lead time (days) | 7 | To be negotiated |

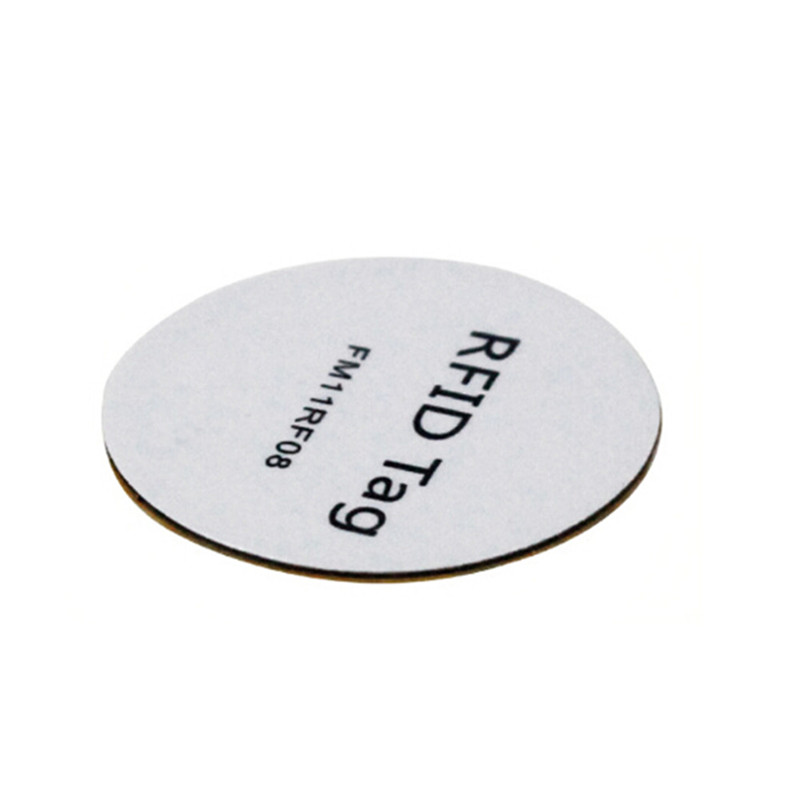

13.56mhz RFID token NFC NTAG216 PVC coin tag with adhensive sticker
Material: PVC
Other Craft : Anti-metal /3M adhesive/ Epoxy /Hole etc
Printing
Silkscreen, CMYK
Crafts: QR code printing, Barcode, Logo printing, etc.
Round or square shape, or custom shape
The white NFC coin tag has a 3M adhesive layer, so it can be easily attached to products and objects. Our customers mostly use the NFC coin for product identification and object monitoring. Due to its robust and waterproof material, the coin can be used indoors as well as outdoors. On demand we also offer to print an individual design on this coin
| Features | NTAG 213 | NTAG 215 | NTAG 216 |
| Standard | ISO/IEC14443 Type A, NFC Forum Type 2 | ISO/IEC14443 Type A, NFC Forum Type 2 | ISO/IEC14443 Type A, NFC Forum Type 2 |
| Memory | |||
| User Memory | 144 bytes | 504 bytes | 888 bytes |
| Write Endurance | 100,000 cycles | 100,000 cycles | 100,000 cycles |
| Data Retention | 10 years | 10 years | 10 years |
| RF-Interface | |||
| Frequency [MHz] | 13.56 MHz | 13.56 MHz | 13.56 MHz |
| Baud rate | 106 kbits/s | 106 kbits/s | 106 kbits/s |
| Anti-collision | bit-wise | bit-wise | bit-wise |
| Operating Distance | up to 100 mm | up to 100 mm | up to 100 mm |
| Input capacitance | 50 pF | 50 pF | 50 pF |
| Security | |||
| Unique Serial Number | 7 bytes, cascaded | 7 bytes, cascaded | 7 bytes, cascaded |
| Write Protection | Blockwise | Blockwise | Blockwise |
| Originality signature | Yes | Yes | Yes |
| Password protection | Yes | Yes | Yes |
