Where can it be used in?
This device is widely used in hospitals, physician offices, clinical settings, assisted living facilities and patient homes.

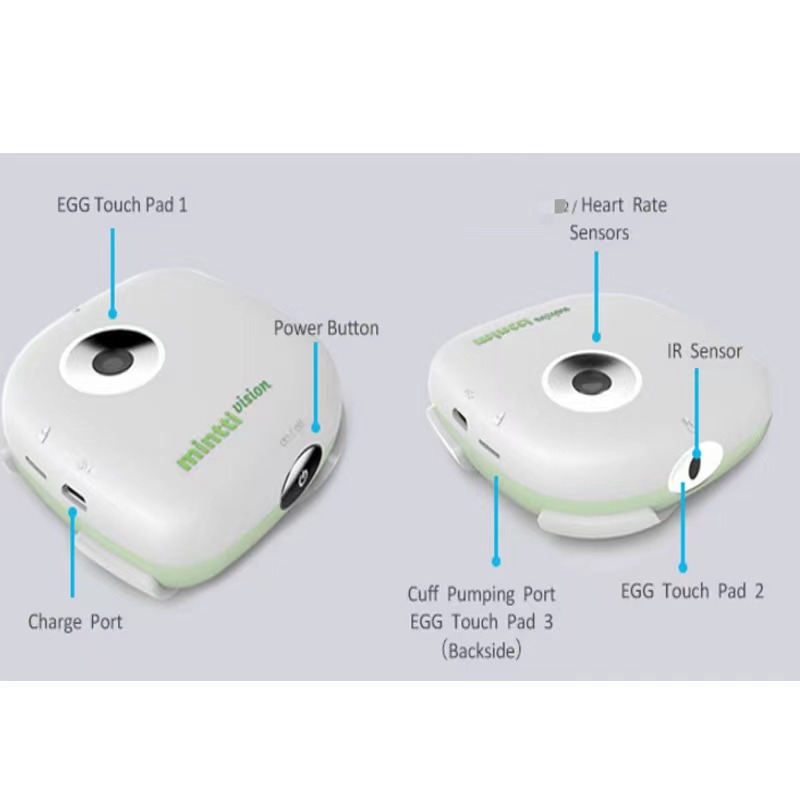

Health Tracker is a portable, convenient and easy to use Vital Signs Monitor applying a proprietary algorithm of Rothman Index. Equipped with the most advanced sensors and technologies, Mintti Vision provides an authentic measurement of your temperature, blood pressure, blood
glucose, S-P-2, respiratory rate, and heart rate.
Syncing with a smartphone APP of Mintti Vision,
it makes health monitoring simple and comfortable. You can share your personal health data with your family members or directly
with your doctor without leaving home.
Rothman Index (RI) applied in Mintti Vision is a software program for mapping a patient’s overall health condition over time. It generates a ‘health score’ based on factors such as vital signs and a person’s self-assessments. It is displayed with a graph of the patient’s condition in real-time to enable the physician’s early
intervention for patients.
With this portable smart health tracker, to manage your health condition at anytime, and anywhere!
Blood Pressure
Mintti Vision helps users to measure their own blood pressure conveniently with our innovative and detachable cuff.
Heart Rate
Mintti Vision allows users to keep track of their heart rate, which provides important information for people to monitor their health. Stay connected with your cardiac health by the Mintti Vision.
| Product Name: | Mintti Vision Vital Signs Monitor |
| Power voltage: | DC3.7V |
| Size: | 70mm*70mm*18.4mm |
| Weight: | Approximately 70g |
| Wireless communication: | BLE 4.0 Enabled |
| Working frequency: | 2.4000GHz-2.4835GHz |
| Blood pressure/ heart rate | |
| Measuring method: | Oscillometric method |
| Cuff perimeter: | 22-35cm |
| Measuring range: | Blood pressure: 0-300mmHgSystolic pressure: 60-260mmHgDiastolic pressure: 40-199mmHg |
| Heart Rate: | 30-300bpm |
| Measuring Rate: | Blood pressure ±3 mmHgHeart rate ±5% |
| Blood SP02 | |
| Measuring method: | Reflective |
| Method measuring range: | 90%-99% |
| Measuring error | +/- 2% |
| Glucose measurement | |
| Measurement range: | 1.1mmol/L~33.3mmol/L |
| Measurement time: | 15S |
| Temperature measurement | |
| Measuring method: | Infra-red |
| Measuring part: | Forehead |
| Measuring range: | 34 -43 ℃ |
| Measuring error: | 36-39℃ +- 0.2℃ >39℃ or <36℃ +- 0.3℃ |
| ECG Measurement | |
| Measurement mode: | Single Lead |
| Input impedance: | >10MΩ |
| Input circuit current: | <0.1µA |
| Calibration voltage: | 1mV +-0.05mV |
| Sensitivity tolerance: | <10% |
| 50Hz interference suppression filter: | >20dB |
| Maximum input range: | +/- 4.7mV |
| Polarization resistance voltage: | +/-300mV, Amplitude variation <10% |
| Frequency response: | 0.5-40Hz |
| Overshoot: | Not more than 20% |
| Operating Environment | |
| Environment temperature: | 5~40℃ |
| Relative humidity: | 15%~93% |
| Barometric pressure: | 86kPa~106kPa |
| Supply voltage: | 50V±0.25V |
| Battery capacity: | 400mAH |
How to Operate
Step 1: Download and install “Mintti Vision” APP.
Step 2: Long press the power button of the device to switch on.
Step 3: Connect the device via Blue-tooth with the smartphone.
Step 4: Click one of the features to start measuring.
Step 5: Get a graph of Rothman Index.
Note: Please see details of measurement steps separately for temperature, blood glucose, blood pressure, and ECG in User Manual.

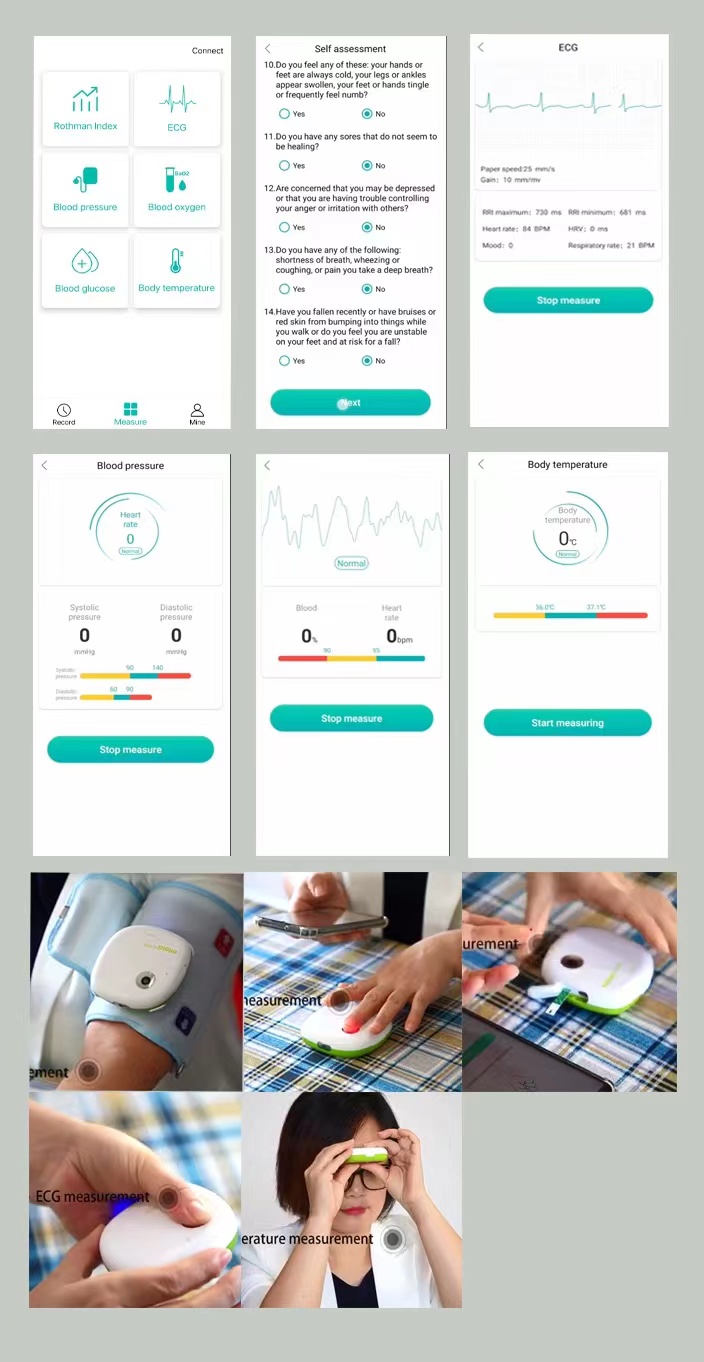

APP Screenshot
Blood Pressure/Heart Rate/S-P-2/Blood Glucose/Temperature/ECG

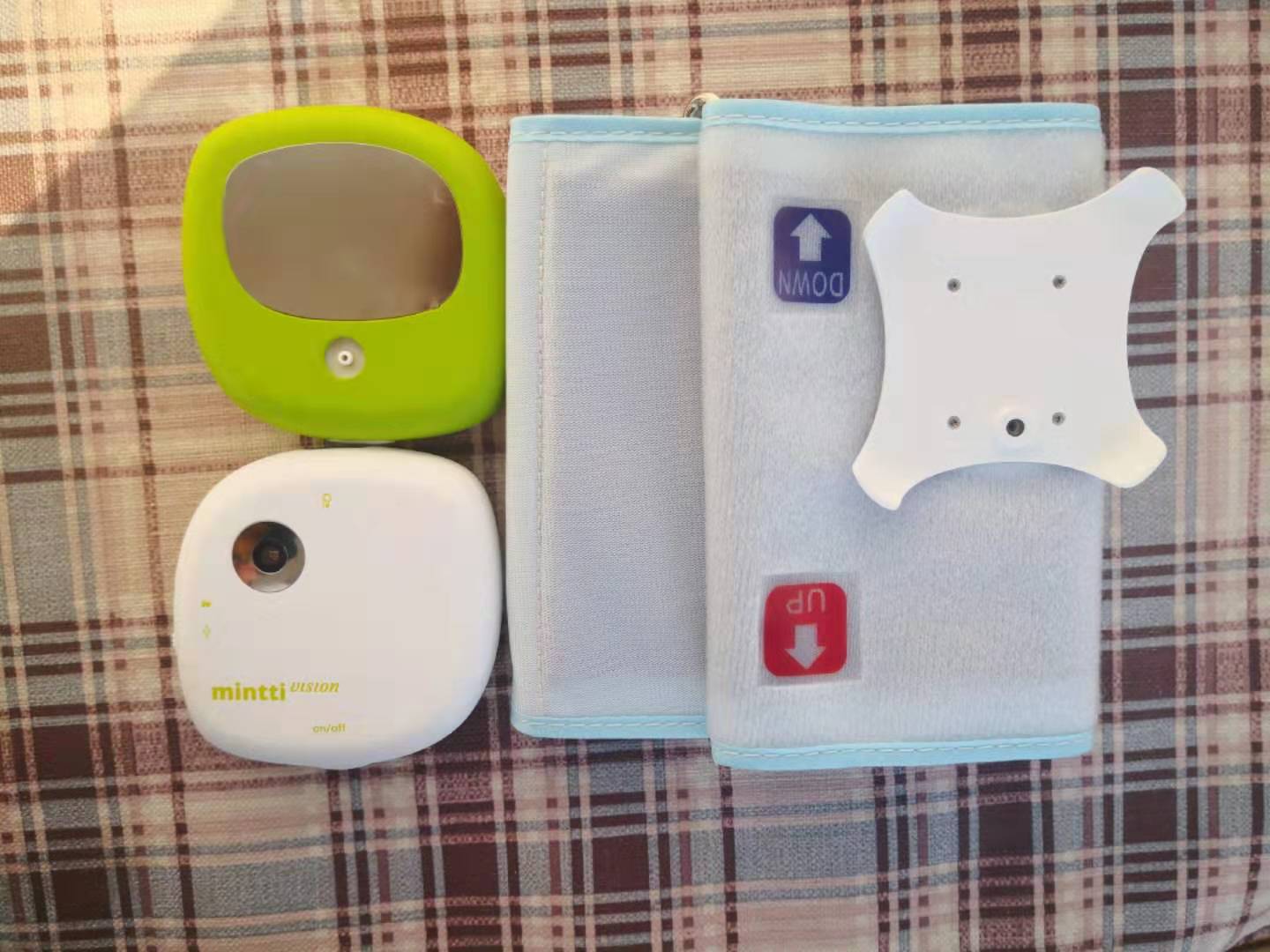

| 1pc | Mintti Vision Health Monitor |
| 1pc | Blood Pressure Cuff |
| 1pc | English Manual |
| Colorbox Size | 135x65x190mm |
| Weight | 0.48kgs |
| OEM Packing box | Accepted |
